RAMPS > SUREWELD PRODUCTSFitment enquiry

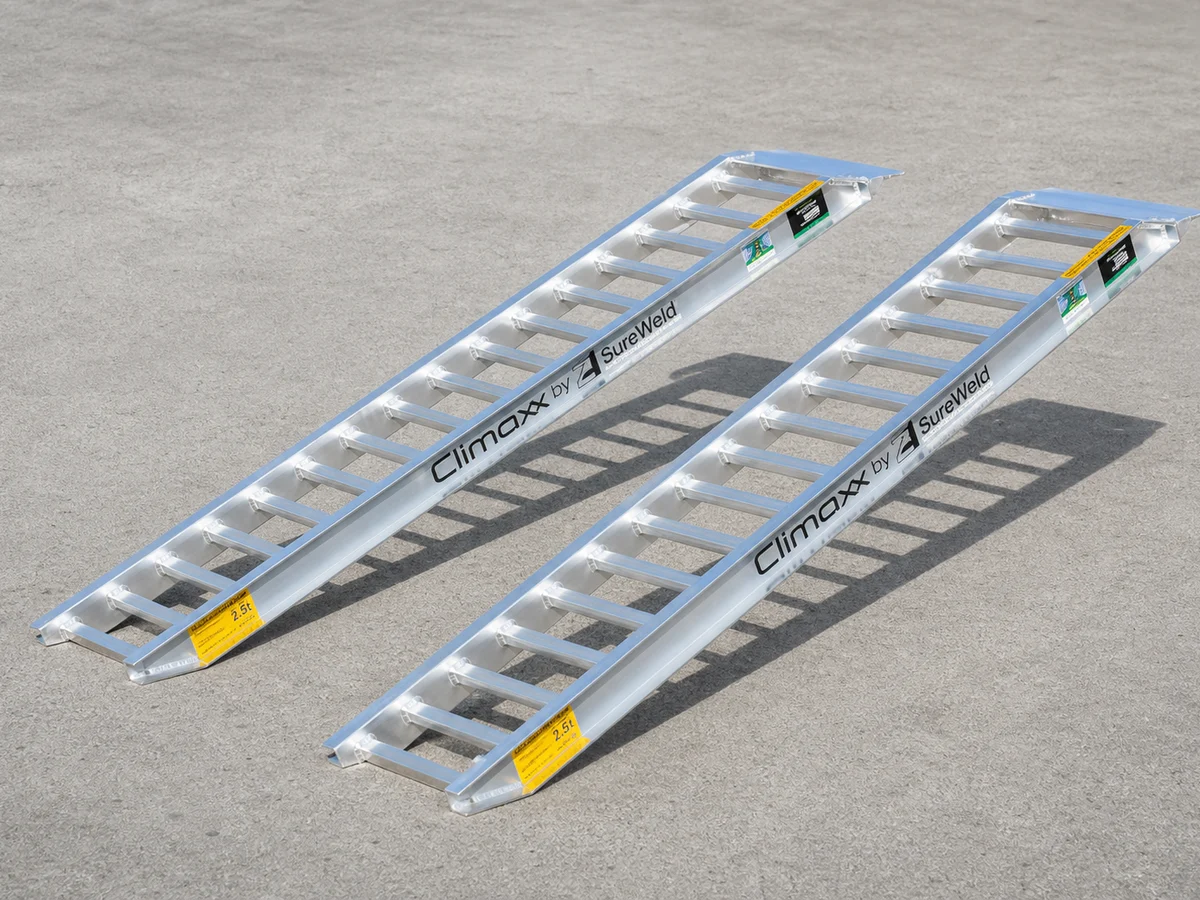

SureWeld Products
- Machine
- Contact us
- Width
- On request
- Capacity
- Capacity on request
- Pin Size
- Contact us

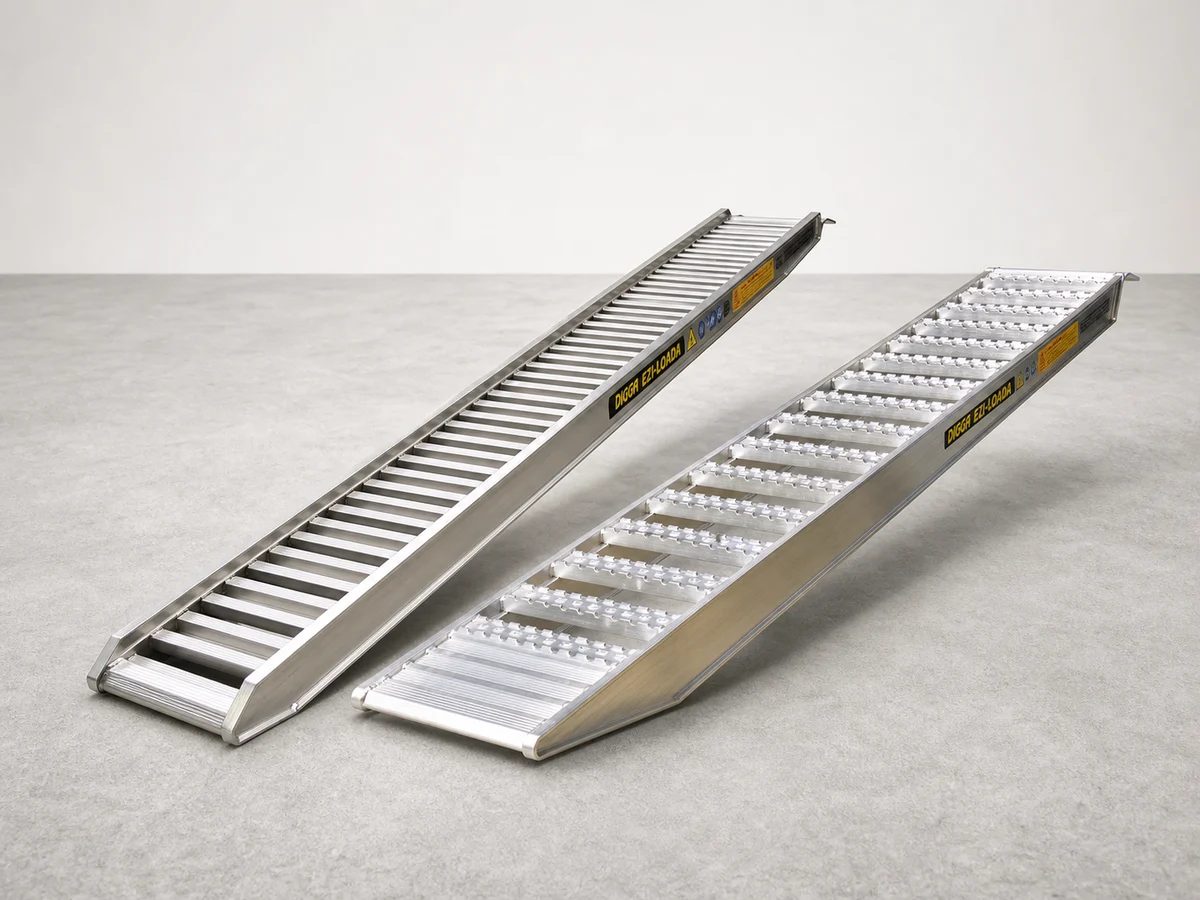

Digga Ramps
12 size options
Digga Ezi-Loada aluminium ramps for rubber tracked, wheeled, and selected steel tracked machinery. Lightweight, reinforced loading ramps with multiple attachment options and capacities from 1.5t to 9.0t.
Fitment checked before quote. ETA, pickup and freight timing are confirmed after availability is checked.
Fitment checked
Pins, hitch and machine details checked before quote.
Berkeley Vale base
Pickup or freight options confirmed with ETA.
ETA by quote
Timing depends on stock, fitment and freight path.
Real advice
Talk to experienced people who use and understand gear.
Selected specifications
- Track Type
- Rubber tracks and wheels
- Beam
- 64mm
- Internal Width
- 255mm
- External Width
- 300mm
- Weight
- 14kg
- Length
- 2500mm
Fitted as standard
- Three attachment methods: pin, tongue, or chain
- Patented fully extruded double T-beam ramp design
- Reinforced low lead-on/off end for smoother machine loading
- Available in standard LR and universal LRU ramp profiles
Compatible machines
We fit digga ramps options to major excavator brands once pickup and hitch details are checked.
KubotaYanmarCaterpillarKomatsuHitachiKobelco
Quote prep checklist
- Excavator make, model and tonnage.
- Digga Ramps variant or machine size you are considering.
- Pin diameter, pin centre spacing and dipper width if available.
- Quick hitch brand and model, or photos of the current pickup.
Built for real work
Digga Ezi-Loada aluminium ramps for rubber tracked, wheeled, and selected steel tracked machinery. Lightweight, reinforced loading ramps with multiple attachment options and capacities from 1.5t to 9.0t.
01
Fitment checked before quote.
02
Wear points and pickup details reviewed.
03
Quoted against machine and job details.
04
Pickup or freight confirmed from Berkeley Vale.
Fitment matrix
Sizes, specs and quote-ready variants
Scan the available machine sizes, pick a likely variant, then send the exact pickup details before pricing. This keeps the page useful without pretending every hitch is identical.
Variants
12
Range
Check
Fitment
Checked
Spec snapshot
Quote-critical details
- Track Type
- Rubber tracks and wheels
- Beam
- 64mm
- Internal Width
- 255mm
- External Width
- 300mm
Work-ready features
What changes on site
01Three attachment methods: pin, tongue, or chain
02Patented fully extruded double T-beam ramp design
03Reinforced low lead-on/off end for smoother machine loading
04Available in standard LR and universal LRU ramp profiles
All variants
Every catalogue variant is visible by default. Use a machine-size filter only when you want a shorter shortlist.
1.5t @ 1m
LR152530
Width2500mm x 300mm
2.0t @ 1m
LR233030
Width3000mm x 360mm
3.0t @ 1.5m
LR303030
Width3000mm x 360mm
3.0t @ 1.5m
LR303535
Width3500mm x 410mm
3.5t @ 1.5m
LR353535
Width3500mm x 410mm
4.0t @ 1.5m
LR403545
Width3500mm x 510mm
4.7t @ 1.5m
LR473545
Width3500mm x 510mm
4.7t @ 1.5m
LR473550
Width3500mm x 560mm
5.9t @ 1.5m
LR593545
Width3500mm x 510mm
6.2t @ 2.0m
LRU593550
Width3500mm x 560mm
7.0t @ 2.0m
LRU663550
Width3500mm x 560mm
9.0t @ 2.0m
LRU823550
Width3500mm x 560mm
| Machine | Width | Item | Action |
|---|---|---|---|
| 1.5t @ 1m | 2500mm x 300mm | LR152530 | |
| 2.0t @ 1m | 3000mm x 360mm | LR233030 | |
| 3.0t @ 1.5m | 3000mm x 360mm | LR303030 | |
| 3.0t @ 1.5m | 3500mm x 410mm | LR303535 | |
| 3.5t @ 1.5m | 3500mm x 410mm | LR353535 | |
| 4.0t @ 1.5m | 3500mm x 510mm | LR403545 | |
| 4.7t @ 1.5m | 3500mm x 510mm | LR473545 | |
| 4.7t @ 1.5m | 3500mm x 560mm | LR473550 | |
| 5.9t @ 1.5m | 3500mm x 510mm | LR593545 | |
| 6.2t @ 2.0m | 3500mm x 560mm | LRU593550 | |
| 7.0t @ 2.0m | 3500mm x 560mm | LRU663550 | |
| 9.0t @ 2.0m | 3500mm x 560mm | LRU823550 |
Don't see the exact pickup? Send details for a custom check.
Quote checklist
What to send for a Digga Ramps quote
Send the product, machine and fitment details before requesting pricing. It helps the team confirm the right variant, attachment pickup, ETA and freight option.
Send these details first
It helps the team confirm fitment, availability and freight faster.
- Excavator make, model and tonnage.
- Digga Ramps variant or machine size you are considering.
- Pin diameter, pin centre spacing and dipper width if available.
- Quick hitch brand and model, or photos of the current pickup.
- Delivery suburb, pickup preference from Berkeley Vale and timing.
