BUCKETS > GENERAL PURPOSE37 fitmentsDB-18-200
GP Digging Bucket
- Machine
- 1.8-30T
- Width
- 200-1500mm
- Capacity
- 0.04-1.75 m³
- Pin Size
- 30-90mm
Mud Bucket
1.8T - 30T
13 size options
Heavy-duty mud buckets fitted with a Bolt On Edge for enhanced durability and efficient bulk material moving.
Fitment checked before quote. ETA, pickup and freight timing are confirmed after availability is checked.
Fitment checked
Pins, hitch and machine details checked before quote.
Berkeley Vale base
Pickup or freight options confirmed with ETA.
ETA by quote
Timing depends on stock, fitment and freight path.
Real advice
Talk to experienced people who use and understand gear.
Selected specifications
- Width
- 900mm
- Capacity
- 0.12m³
- Weight
- 85kg
- Edge Type
- Bolt On
- ETA
- Contact for ETA
- Type
- Mud Bucket
Fitted as standard
- Type: Mud Bucket
- Edge Type: Bolt On Edge
- Application: Bulk Material Moving
- Construction: Heavy-duty
Compatible machines
We fit mud bucket options to major excavator brands once pickup and hitch details are checked.
KubotaYanmarCaterpillarKomatsuHitachiKobelco
Quote prep checklist
- Excavator make, model and tonnage.
- Mud Buckets variant or machine size you are considering.
- Pin diameter, pin centre spacing and dipper width if available.
- Quick hitch brand and model, or photos of the current pickup.
Built for real work
Heavy-duty mud buckets fitted with a Bolt On Edge for enhanced durability and efficient bulk material moving.
01
Fitment checked before quote.
02
Wear points and pickup details reviewed.
03
Quoted against machine and job details.
04
Pickup or freight confirmed from Berkeley Vale.
Fitment matrix
Sizes, specs and quote-ready variants
Scan the available machine sizes, pick a likely variant, then send the exact pickup details before pricing. This keeps the page useful without pretending every hitch is identical.
Variants
13
Range
1.8T - 30T
Fitment
Checked
Spec snapshot
Quote-critical details
- Width
- 900mm
- Capacity
- 0.12m³
- Weight
- 85kg
- Edge Type
- Bolt On
All variants
Every catalogue variant is visible by default. Use a machine-size filter only when you want a shorter shortlist.
1.8T
MB-18-900
Pin30mm
Width900mm
1.8T
MB-18-1000
Pin30mm
Width1000mm
2.5T
3.5T
MB-35-1200
Pin40/45mm
Width1200mm
5T
MB-50-1000
Pin45mm
Width1000mm
5T
MB-50-1200
Pin45mm
Width1200mm
8T
MB-80-1200
Pin50mm
Width1200mm
8T
MB-80-1500
Pin50mm
Width1500mm
13T
MB-130-1500
Pin60/65mm
Width1500mm
13T
MB-130-1800
Pin60/65mm
Width1800mm
20T
MB-200-1800
Pin80mm
Width1800mm
25T
MB-250-2000
Pin90mm
Width2000mm
30T
MB-300-2100
Pin90mm
Width2100mm
| Machine | Pin | Width | Item | Action |
|---|---|---|---|---|
| 1.8T | 30mm | 900mm | MB-18-900 | |
| 1.8T | 30mm | 1000mm | MB-18-1000 | |
| 2.5T | - | - | - | |
| 3.5T | 40/45mm | 1200mm | MB-35-1200 | |
| 5T | 45mm | 1000mm | MB-50-1000 | |
| 5T | 45mm | 1200mm | MB-50-1200 | |
| 8T | 50mm | 1200mm | MB-80-1200 | |
| 8T | 50mm | 1500mm | MB-80-1500 | |
| 13T | 60/65mm | 1500mm | MB-130-1500 | |
| 13T | 60/65mm | 1800mm | MB-130-1800 | |
| 20T | 80mm | 1800mm | MB-200-1800 | |
| 25T | 90mm | 2000mm | MB-250-2000 | |
| 30T | 90mm | 2100mm | MB-300-2100 |
Don't see the exact pickup? Send details for a custom check.
Quote checklist
What to send for a Mud Buckets quote
Send the product, machine and fitment details before requesting pricing. It helps the team confirm the right variant, attachment pickup, ETA and freight option.
Send these details first
It helps the team confirm fitment, availability and freight faster.
- Excavator make, model and tonnage.
- Mud Buckets variant or machine size you are considering.
- Pin diameter, pin centre spacing and dipper width if available.
- Quick hitch brand and model, or photos of the current pickup.
- Delivery suburb, pickup preference from Berkeley Vale and timing.
Related Products
View all
BUCKETS > TILT BUCKET9 fitmentsTB-18-900
Tilt Bucket
- Machine
- 1.8-30T
- Width
- 900-2100mm
- Capacity
- 0.08-1.35 m³
- Pin Size
- 30-90mm
BUCKETS > SIEVE BUCKET8 fitmentsSB-18-900

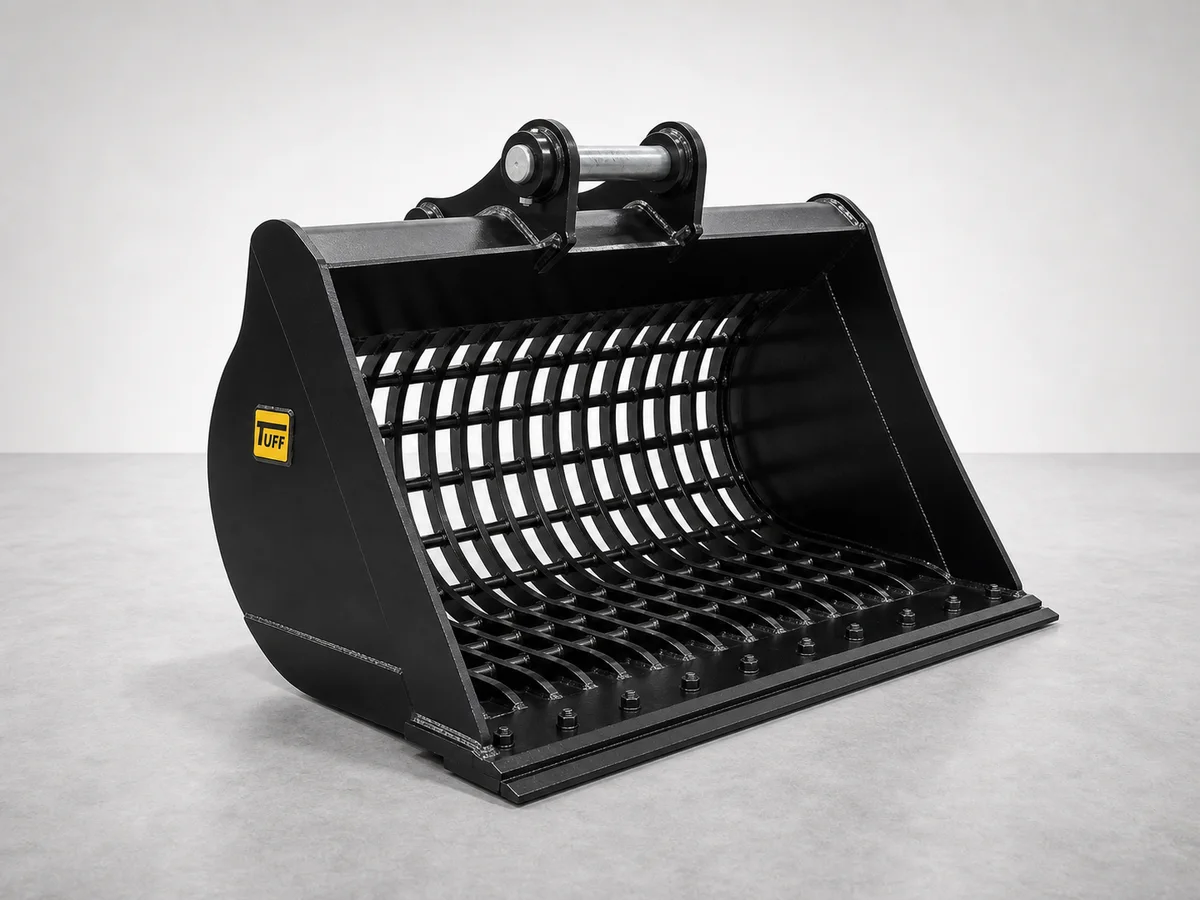

Sieve Bucket (Skeleton)
- Machine
- 1.8-30T
- Width
- 900-2000mm
- Capacity
- 0.35-1.3 m³
- Pin Size
- 30-90mm
BUCKETS > EXCAVATOR RAKE7 fitmentsRK-18-1000

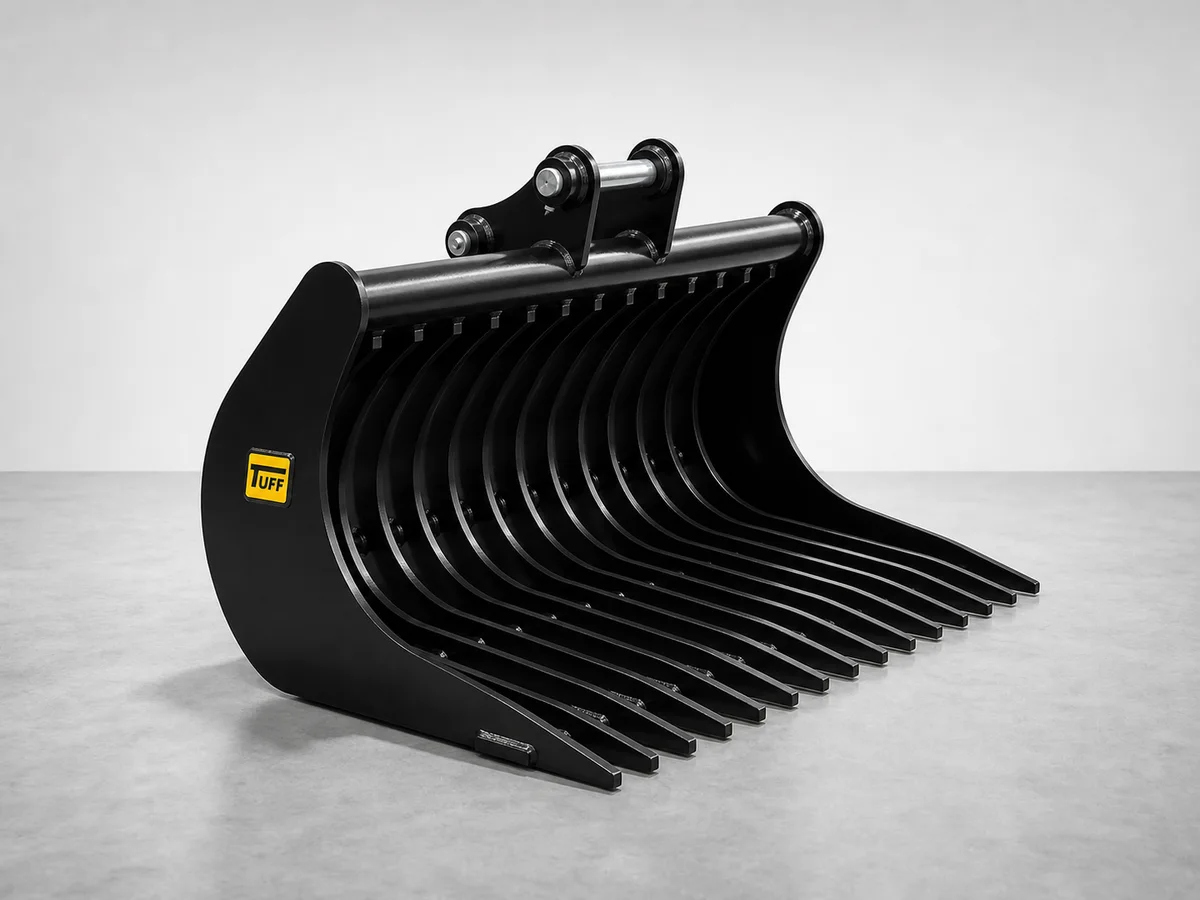

Excavator Rake
